4 Pack CALB CA100 Battery Cell 3.2V LiFePO4 Safe
  • 4 Pack CALB CA100 Battery Cell 3.2V LiFePO4 Safe

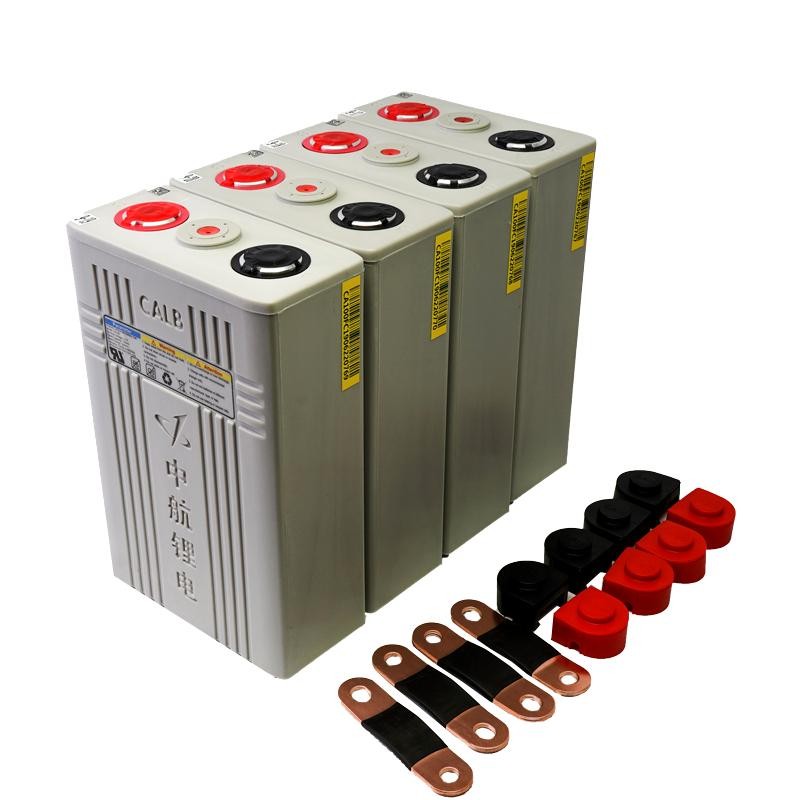

4 Pack CALB CA100 Battery Cells, 12 V, 1.3 kWh LiFePO4 Safe

$840.40
Tax included

High Quality, Prismatic Cell, Easy DIY

Build your own. Simply. Know what you've got.

A Grade Cells.  Quality Tested.  Guaranteed New & unused.
Very Safe - can be heated, cut, nailed & drilled with no explosions or flames.
Check this out...  https://www.youtube.com/watch?v=EMARDvMz62A
These cells are WAY CHEAPER than Lead Acid / AGM batteries!
Lead Acid / AGM cost approx $1.65 per kWh per cycle, lasting ~500 cycles*
CALB LiFePO4 cost approx $0.17 per kWh per cycle , lasting ~4000 cycles*
* see details of calculations in Description
Pack comes with all Rubber Caps, Busbars, Bolts, Spring Washers & Washers needed

This pack contains

Quantity
In Stock



Secure Shopping Site



1-3 days from our warehouse

  1-5 years Manufacturers Warranty

See each product for details

Compare the cost of CALB LiFePO4 to Lead Acid /AGM batteries

These cells are WAY CHEAPER than Lead Acid / AGM batteries!
Lead Acid / AGM cost approx $1.65 per kWh per cycle, light current draw
- based on a High Quality Battery, 120Ah, $495 inc GST, expected life of 500 cycles at 50% Depth of Discharge
CALB LiFePO4 cost approx $0.17 per kWh per cycle, moderate current draw
- based on any CALB cells at SeaStorm login prices, expected life of 4000 cycles at average of 80% Depth of Discharge
CALB LiFePO4 cost approx $0.30 per kWh per cycle, heavy current draw
- based on any CALB cells at SeaStorm login prices, expected life of 2000 cycles at average of 90% Depth of Discharge

Click here to create a SeaStorm login and see Supporter pricing.

Brand New, A Grade Cells from a Quality Approved Manufacturer

CALB China Aviation Lithium Battery Co Ltd have specialized in the manufacture of high quality Lithium batteries since 2007.

  • Established in 2007
  • CE, UL, TUV & RoHS approved
  • IATF 16949:2016 approved

IATF 16949:2016 is the International Standard for Automotive Quality Management Systems.

Prismatics Cells make building larger battery systems easy

  • So much simpler...
  • Larger cells require less wiring and connections
  • Easily grouped and connected with high current bolt on busbars
  • Less cells to manage with a battery management system
  • Simpler fault finding
  • Easily add more cells to increase the stored energy of the system

How many and what size cells suit me?

  • 100 Ah cells are for smaller spaces and lower capacity requirements.
  • 4 x 3.2V x 100 Ah cells in series give a Nominal 12.8 V, 1280 Wh pack

Vastly Superior to prepackaged 12V enclosed batteries with onboard BMS

With Prepackaged battery packs...

  • If one internal component in your whole battery fails... Chuck it out and buy a new one!
  • Many manufacturers don't tell you what cells they use inside the pack.  How good are they?
  • They also don't say much about the BMS - battery management system.  How good is it?
  • They do not cool as easily - be careful using them in hot conditions
  • Most of them are current limited - they cannot be configured to allow engine starting

When building Prismatic Cell packs

  • You get to choose the quality of the cells and the BMS
  • You also get to configure the system to have more control over current limits, charging limits and temperature cutoff points.
  • Air Cooling can be simply achieved.  For example using cheap computer fans.
  • There will be more wires to connect - but it's not rocket science!
  • If one component fails - it can be replaced

Dig Deeper

Please download & carefully read information PDF's in Attachments.

4xCALB-CA100
16 Items

Data sheet

Weight - Dry (kg)
13.2 ± 0.8 kg
Max Discharge Current (A)
2C - 200 A for 3 min, 3C - 300 A for 30 sec
Nominal Voltage (V)
12.8 V
Capacity (Ah)
100 Ah
Operating Voltage (V)
10.4 - 14.4 V (80% DOD)
Discharge Voltage Cutoff (V)
10.0 V
Charge Voltage Cuttoff (V)
14.6 V
Optimal Discharge Current (A)
1C, 100 A
Max Continuous Discharge Current (A)
2C, 200 A
Optimal Charge Current (A)
0.3C, 30 A
Max Continuous Charge Current (A)
1C, 100 A
Life Cycles (Heavy Usage)
Greater than 2000 @ 1C rate with 80% Capacity still remaining
Operating Temperature Range (°C)
Charge 0°C ~ 45°C, Discharge ‐20°C ~ 55°C, Storage ‐20°C ~ 45°C
Shell Material
Plastic
Dimensions (mm)
216 x 142 x 268 mm

Download

CALB-CA100Ah Tech Specification

CALB CA100 3.2V 100Ah LiFePO4 Battery Cell Specifications

Download (1018.93k)

CALB LiFePO4 User Manual

CALB LiFePO4 Battery Cells User Manual

Download (1.44M)

CALB CA100 Factory Testing EN CN

CALB CA100 Factory Testing English Chinese

Download (569.65k)

CALB_LiFePO4_12V_Packs_Drawing

CALB LiFePO4 12V Battery Pack Drawings - many options for building different sized packs!

Download (4.34M)

CALB_LiFePO4_24V_Packs_Drawing

CALB LiFePO4 24V Battery Pack Drawings - many options for building different sized packs!

Download (5.68M)

CALB_LiFePO4_36V_Packs_Drawing

CALB LiFePO4 36V Battery Pack Drawings - many options for building different sized packs!

Download (7.4M)

CALB_LiFePO4_48V_Packs_Drawing

CALB LiFePO4 48V Battery Pack Drawings - many options for building different sized packs!

Download (6.44M)
